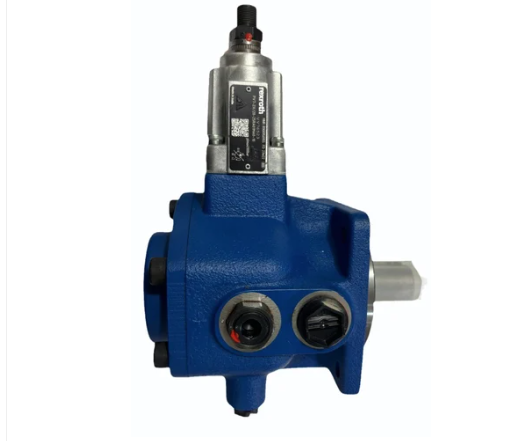

Rexroth Variable Vane Pump

Minimum Order Quantity: 1 Piece Max Flow Rate(Litre/Min) 30 LPM Applications Automatic Transmission Type Hydraulic Vane Pump Motor Horsepower 3 HP Number Of Stages Single Stage Frequency HLP – mineral oil to DIN 51 524 Teil 2 Please take into account our specifications stated within ca Material HYDRAULIC Country of Origin Made in India Types PV7…A hydraulic pumps are direct actuated vane pumps with an adjustable displacement volume. They basically comprise of the housing (1), cover (2), rotor (3), vanes (4), stator ring (5), compression spring (6), adjustment screw (7) and control plate (8). For limiting the maximum flow, the pump is fitted with an adjustment screw (9). The driven rotor (3) rotates within the stator ring (5). The vanes (4) which are guided in the rotor (3) are pressed against the inner running surface of the stator ring (5) by centrifugal force. Suction and displacement process The chambers Additional Information: Item Code: PV72X Delivery Time: 2 DAYS Packaging Details: CARTON BOX
