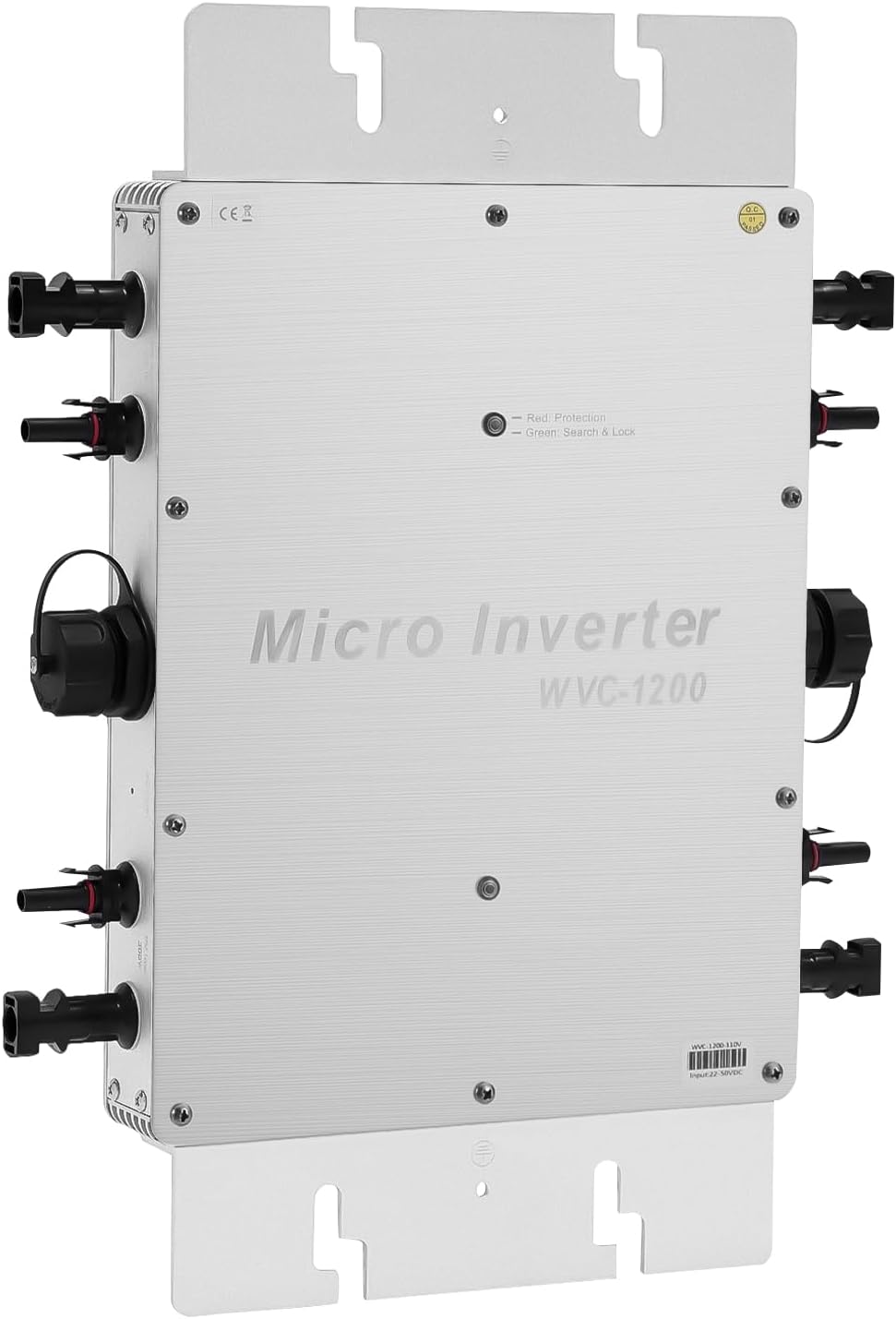

1200W Grid Tie Solar Inverter Reverse Transmission Tech Microinverter IP65 Pure Sine Wave Inverter with AC Data Monitoring LCD Screen Max for 30V/36V Solar Panel, 36V Battery

Price: $152.99 - $132.99(as of Feb 14, 2026 00:11:20 UTC – Details) How to Use1. Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.2. Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.3. Open the cover of the AC output interface of the inverter and connect the AC cable to the AC plug.4. Connect the AC output cable to the AC main cable.5. Repeat steps 1 to 3 to install and connect all inverters.6. Connect the AC main cable to the public grid and start your green energy journeySpecificationModel: WVC-1200WColor: SilverMaterial: Aluminium AlloyPower: 1200WVoltage: 110VPlug Type: US StandardMaximum Input DC Voltage: 54VPeak Power Tracking Voltage: 22-45VOperating Voltage Range: 17-50VMin/Max Start-up Voltage: 22-50VDCMaximum DC Short Circuit Current: 80AMaximum Input Operating Current: 54.4APeak Power Output: 1200wattRated Output Power: 1150wattRated Output Current: 9.58ARated Voltage Range: 80-160VACRated Frequency Range: 57-62.5HzPower Factor: ＞99％Max Unit Per Branch Circut: 3pcs(Single-phase)Static MPPT Efficiency: 99.5%Maximum Output Efficiency: 91.2%Night Time Power Loss: ＜1WTotal Flow Distortion: ＜5%Ambient Temperature Range: ﹣40℃~60℃/﹣40℉~140℉Waterproof Rating: IP65Cooling Method: Self-coolingCommunication Mode: Power Line CarrierPower Transmission Mode: Reverse Transmission, Load PriorityGross Weight: 8.99lbsNet Weight: 6.35lbsProduct Size: 8.27*14.72*1.57inchPackage Size: 18.7*13.39*4.53inchPackage Included1* Micro Inverter1* Power Cord1* English ManualOther Accessories【High Efficiency】The inverter has built-in high-precision maximum power point tracking, which can increase power generation to more than 25%. Due to the efficient power reverse transmission technology, the power transmission rate can reach 99.9%【Digital Control】The inverter uses intelligent soft switching technology, a high-frequency switching power supply and 32-bit DSP full digital SPWM control technology. This makes the product highly resilient to interference and ensures fast operation and high intelligence【Electrical Isolation】The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is much more reliable【Flexible Installation Mode】During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a 3-phase system to provide a 3-phase AC【LCD Display】The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation. The inverter has heat dissipation holes, which can prolong the service life of the inverter
